Product introduction

Fork (grab) wood machine Product introduction

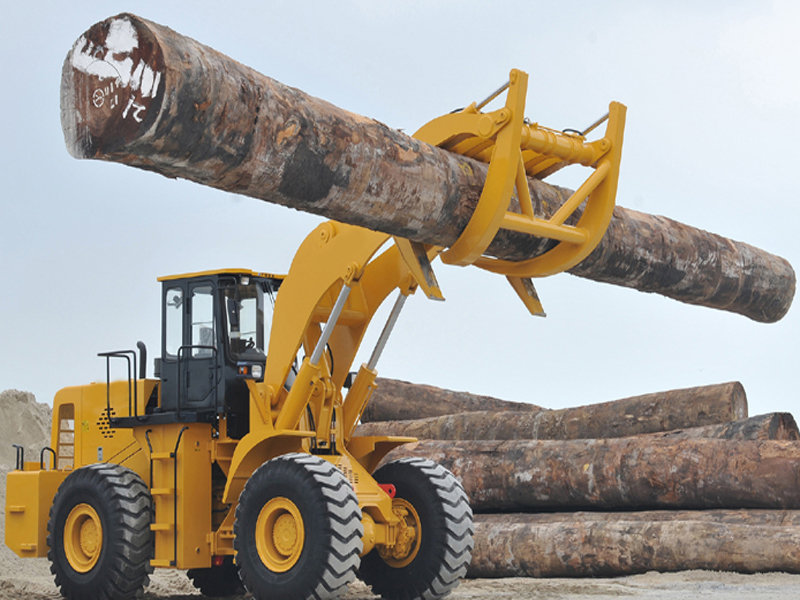

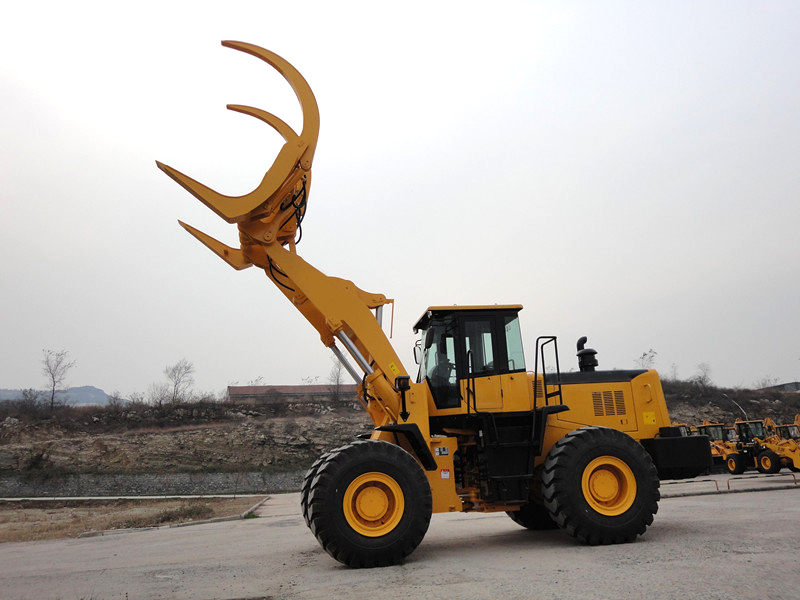

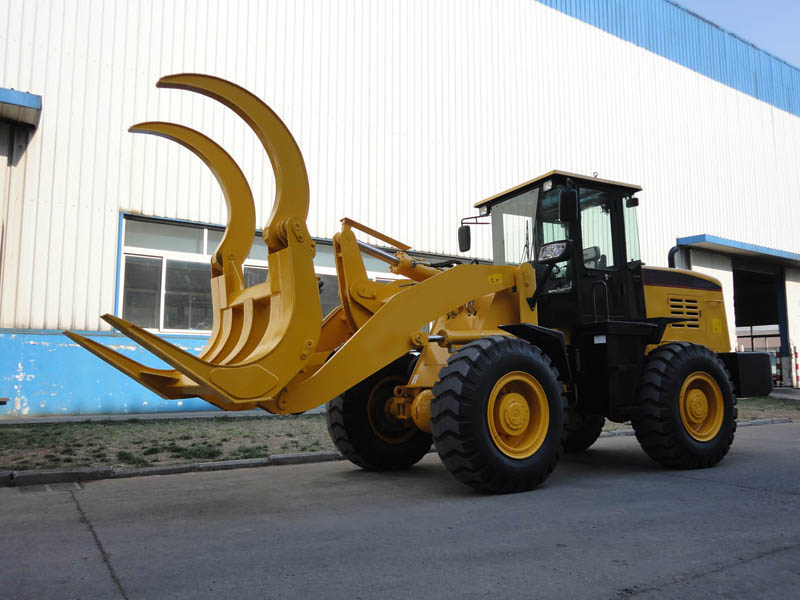

Fork (grab) wood machine / fork (grab) grass machine is a common construction machinery for wood and forage handling. Choosing the right wood grabber and grabber gripper can complete the grass catching, grasping the grass bundle, and catching Wood, garbage, sugar cane and other work, with the advantages of fast operation, high efficiency, good mobility, and light operation.
With the continuous development of modern engineering, the fork (grabbing) wood machine/fork (grab) grass machine not only liberated a lot of labor, but also greatly improved the work efficiency and the safety of work to some extent. Wood machine/fork (grab) grass machine This ordinary construction machine is a routine use machine in many areas, and it is relatively easy to maintain and maintain. In the more densely constructed areas, additional attention needs to be paid to the safety of large machinery and equipment.

Fork (grab) wood machine / fork (grab) grass machine is generally composed of frame, power transmission system, walking device, working device, steering brake device, hydraulic system and control system. The power of the engine is transmitted to the gearbox via the torque converter, and the transmission is transmitted to the front and rear axles via the transmission shaft and respectively to drive the wheels to rotate. The internal combustion engine power is also driven by a transfer case driven hydraulic pump. The working device is composed of a boom, a rocker arm, a connecting rod, a working device, a boom hydraulic cylinder and a rocker arm hydraulic cylinder. One end of the boom is hinged on the frame, and the other end is equipped with a fork (grab) wood/fork (grab) grass. The lifting of the boom is driven by the boom hydraulic cylinder, and the fork (grab) wood/fork (grab) The turning is achieved by the bucket hydraulic cylinder through the rocker arm and the connecting rod. The frame consists of two parts, the front and the rear, and the middle part is connected by a hinge pin. The steering hydraulic cylinder can make the front and rear frames rotate relative to the hinge pin to realize the steering.

Product features

Fork (grab) wood machine Product features

1, streamlined design, beautiful and generous.
2, full hydraulic steering system, power shifting, light operation.
3, the bucket can be automatically leveled, optimize the working device and improve work efficiency.
4, the new sealed cab, Grammer seat, the operating environment is more comfortable.
5, can be equipped with wooden forks, grabbing forks, grab grass forks, rock buckets, increase buckets, push snowboards, forks and other options to meet the needs of various working conditions.

Applications

Technical parameters

		ZG916	ZGM918	ZGM922	ZG926	ZG928	ZG930	ZG936	ZG953
The main technical parameters	Bucketm³	0.6-0.7	0.6-0.7	1.03	1.03	1.3	1.3	1.7	3.0
	Rated loadkg	1800	1800	2200	2600	2800	3000	3000	5000
	Dimensions Length * width * height mm	49001630 2650	49001630 2650	58501880 2800	56001850 2810	55501960 2810	62002000 2900	70502280 3150	77203030 3378
	Wheelbase mm	2000	2000	2150	2300	1500	2650	2650	2920
	Track mm	1350	1350	1450	1450	1620	1620	1850	2200
	Max excavation forceKN	43	37	32	48	48	70	138	160
	Max unloading heightmm	2850	2850	4200-4500	3250-3500	3200-3500	3400-3800	3020-3250	3050
	Unloading distance mm	1030	1030	≥1750	950	885	1084	1200	1148
	Total time S	13	13	9	11.3	11.3	11.3	11	11
	Machine operating weight kg	3000	3200	4800	5000	5400	6000	9500	16700
