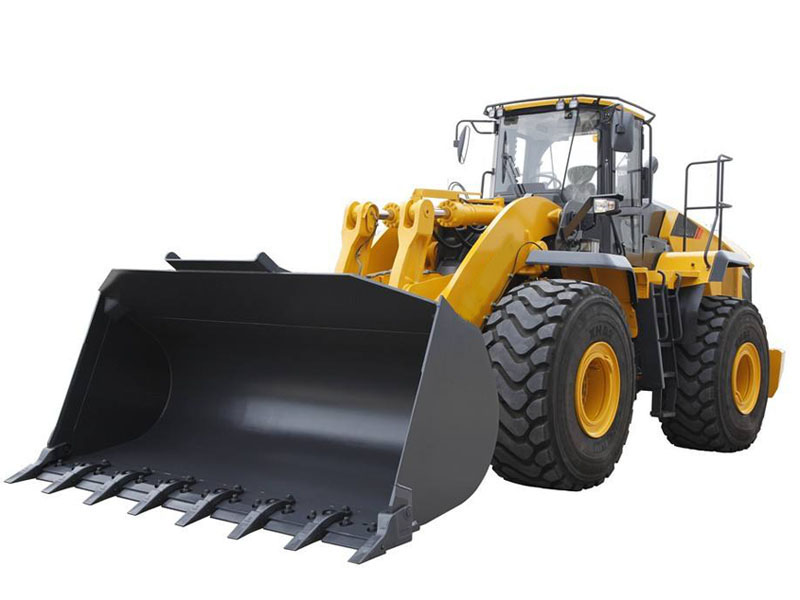

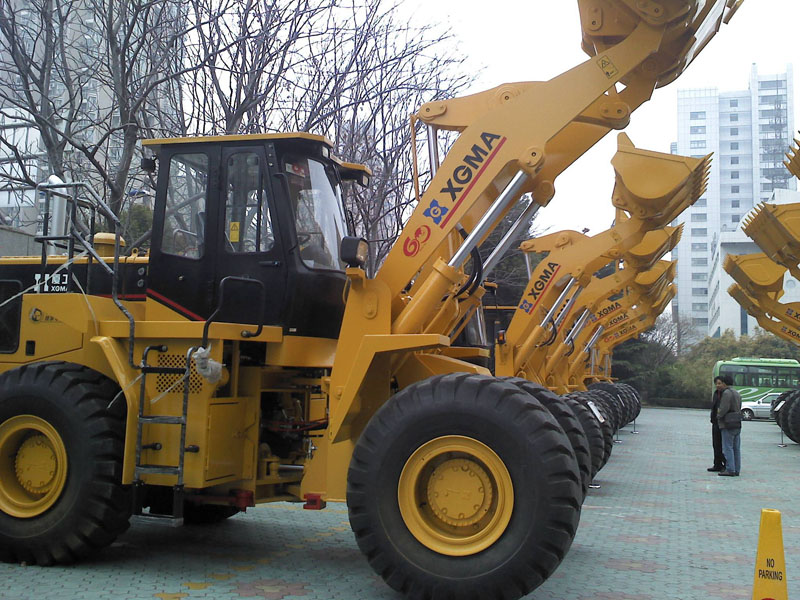

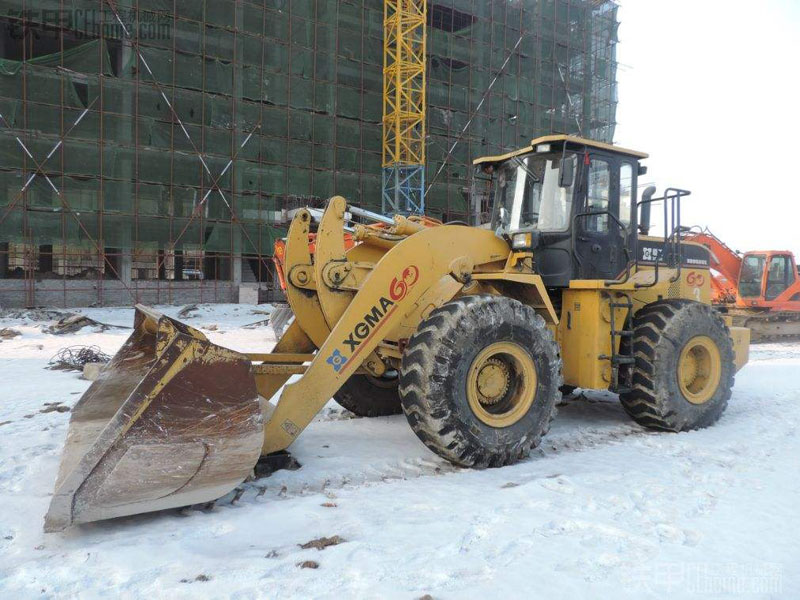

XG956 The structure and working principle
The loader is generally composed of a frame, a power transmission system, a traveling device, a working device, a steering brake device, a hydraulic system, and a steering system. The power of the engine is transmitted to the gearbox via the torque converter, and the transmission is transmitted to the front and rear axles via the transmission shaft to drive the wheels to rotate. The internal combustion engine power is also driven by a transfer case driven hydraulic pump. The working device is composed of a boom, a rocker arm, a connecting rod, a bucket, a boom hydraulic cylinder and a rocker arm hydraulic cylinder. One end of the boom is hinged on the frame, and the other end is equipped with a bucket. The lifting of the boom is driven by the boom hydraulic cylinder. The turning of the bucket is realized by the bucket hydraulic cylinder through the rocker arm and the connecting rod. The frame consists of two parts, the front and the rear, and the middle part is connected by a hinge pin. The steering hydraulic cylinder can make the front and rear frames rotate relative to the hinge pin to realize the steering.
Fourth, product features:
XG956H product features and advantages introduced
First, the components are comprehensively strengthened and the carrying capacity is strong.
1. Reinforced front frame and fork rear frame, the anti-overload capability is increased by 50%! The torsion factor is increased by 20%!
2. The long wheelbase and centering layout are flexible and efficient, and the heavy-duty operation is efficient.
3, bucket optimization design, wear and impact resistance, life expectancy increased by 50%! Increased carrying capacity by 20%!
4. The new reinforced front axle has a load capacity of more than 2 times, which is more suitable for heavy load and severe working conditions.
5, patented detachable, dustproof and waterproof sealing ring to protect the pin more thoughtfully, easy to maintain, durable. Cold-formed steel pipe joints, GB ○-rings and flanged joint flanges prevent leakage.
6, the electrical system uses automotive AVSS electrical harness, waterproof connector, reliability increased by 100%!
Second, unique energy-saving technology, efficient and fuel efficient
1. Double pump combined with split hydraulic patent system, energy saving and high efficiency.
2. The double-variable assembly is optimally matched with the 2000 rotary machine. The displacement of the working pump is increased by 20%. The upgraded hydraulic system is more efficient and fuel-efficient!
3. The electric control supercharged engine with strong power, low fuel consumption, low noise and meeting the national III emission standard can select three kinds of power output modes of heavy load, standard and light load according to the loading materials to meet different needs.
Third, human-machine data interaction, easy and convenient
1, GPS data dynamic network interactive feedback, easy to achieve remote rapid detection and service response.
2. The CAN function stepper motor meter collects and reminds faults and abnormal information in real time. The color block reminds the instrument panel and the electronic fuel level gauge to help the driver grasp the condition of the whole machine in time.
Fourth, humanized design, comfortable and safe
1. The ergonomically designed shock-absorbing cab, the interior is made of soundproof, heat-insulating, flame-retardant materials, equipped with 3C certified green safety glass, and has a good view, providing more spacious driving operation space and safe passage.
2. The reinforced external brake caliper is not only easy to maintain, but also has a shorter braking distance and safer work.
3. The front headlights and the rear three-color lights are protected by protective covers to effectively prevent the lamps from being damaged by falling objects and external forces. Add post-work lights, no blind spots for night work lighting, clear vision and safer operation.
Optional
Optional new air seat, adjustable steering wheel, EATON proportional differential
Optional long arm, wood, grass, pinch, side unloading, push snow, etc.
Optional China National Heavy Duty Truck DI0.22BT3/Dowitz BFM8 Power Machine

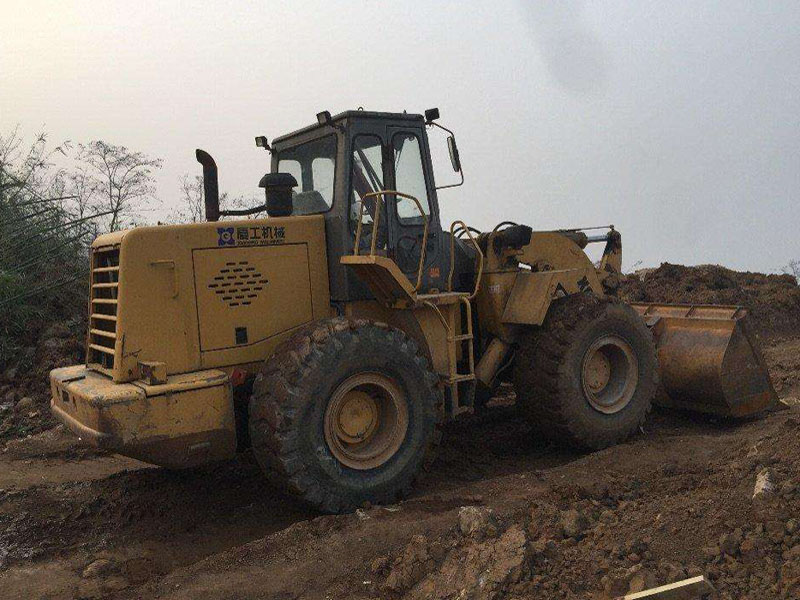

Working condition application
It is mainly used for shovel loading bulk materials such as soil, sand, lime, coal, etc. It is widely used in earth and stone construction machinery for road, railway, construction, hydropower, port, mining and other construction projects.
