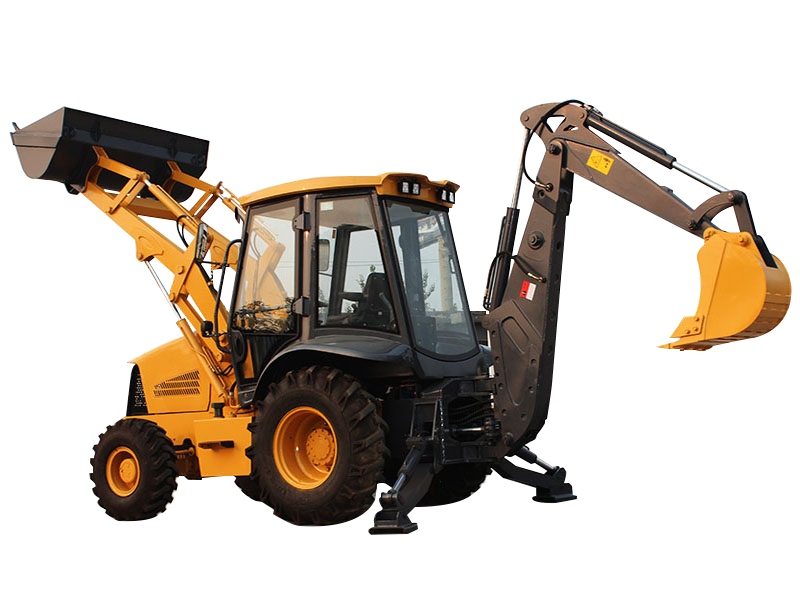

ZG25-30 Backhoe loader

machine weight：3400-6000 Kg

maximum speed： 25-28 Km/h

Maximum gradeability：25 °

Minimum turning radius ：3500-4500 mm

The scope of application：Widely used in building construction road maintenance, farmland construction, brick kiln soil, pipe laying, cable laying, landscaping and cement concrete asphalt road excavation and other operations。

Send E-mail Get Price

Product introduction

Multi-function shovel digging machine, also known as the front dig shovel two busy one machine, two busy, many areas have different names for this machine according to different habits.
The shovel digging machine produced by our company is suitable for small space, can drive in both directions, fast and convenient for back control, with side shifting, can move left and right, greatly improve work efficiency, hydraulic lock with legs, improve work safety , silencer, air filter built-in design, reducing working noise.
The multi-function shovel digging machine is compact, flexible and convenient, energy-saving and efficient, coherent compound action, spacious cab independent console, simple and easy to operate. The excavator is designed as a slideway with the advantages of folding side digging, free sliding, preparation There are auxiliary oil passages, and the upgradeable utility aids can achieve the function of real multi-purpose.
In addition to the shovel digging function of different specifications and different operations, the multi-function shovel digging machine can also complete the work of bulldozing, lifting, loading and unloading other materials if the different working devices are replaced, greatly improving the efficiency of the machine. . It can also carry out excavation, shovel loading, road surface crushing, leveling the site, excavating ditches, laying pipes and many other industries.
After each work of the multi-purpose shovel digging machine, it is necessary to carry out the necessary repair inspection of the machine. Because of the influence of the construction environment, the functions that are not used are closed and folded as much as possible, so that the operation in a narrow space can be realized to the utmost extent.

Product features

1. Increase the cab, safety glass and luxurious shock-absorbing seats.
2. Spliced frame, small turning radius, stepless speed change, full hydraulic steering, easy and convenient operation.
3, the use of brand-name hydraulic parts, dual pump confluence, strong power.
4, equipped with multi-functional pipelines, can be equipped with a variety of options to meet the needs of different users.
5. The central excavation device and the wing-type legs have stronger stability than other types of excavation devices when crushing rocks and deep excavation.
6, the use of widened tires, improve grip, increase handling, while reducing braking distance.

Applications

Technical parameters

一 overall size
1	Dimensions （mm）		650020402800
2	Wheelbase （mm）		2675
3	track （mm）		1630
4	Minimum ground clearance（mm）		280
二、the performance parameters
1	system pressure（MPa）		18
2	machine weight（Kg）		6000
3	maximum speed （Km/h）		28
4	Maximum gradeability（°）		25
5	Minimum turning radius （mm）		4500
三、mining parameters
1	Maximum excavation depth（mm）		2600
2	Excavation unloading height（mm）		2300
3	Maximum digging radius（mm）		4600
4	bucket width（mm）		600
5	bucket capacity（m³）		0.25
6	bucket capacity（mm）		4300
7	Maximum digging force（KN）		28
8	excavator rotation angle（°）		180
四、the loading parameters
1	Maximum unloading height（mm）		3500
2	Maximum unloading distance（mm）		900
3	bucket width （mm）		2200
4	bucket size（m³）		1.2
5	loading maximum lifting height（mm）		4300
6	Maximum Rise（KN）		42
7	Shovel action time and（S）		12
四、the engine
1	model		Yunnei YN48GBZ
2	type direct injection		Turbocharged, four stroke
3	rated power（KW）		90
4	rated speed（r/min）		2400
5	Number of cylinders - inner diameter		4-108
五、the transmission system
1	gearbox		Fixed shaft power shift
2	gears		Before 2 after 2
3	Torque Converter		ZL29A
六、the steering system
1	type		Articulated full hydraulic steering
2	Steering angle （°）		33
七、bridge
1	type	Wheel side deceleration
八、tires
1	Specifications		16/70-20
2	Front wheel air pressure （KPa）		250
3	rear wheel pressure （KPa）		250
4	Service brake		Gas cap oil caliper brake
5	parking brake		manual
九、the amount of oil
1	Fuel tank（L）		50
2	Hydraulic tank（L）		50
十、other
1	drive type		four-wheel drive
2	shift type		Hydraulic shifting
3	Brake distance mm）		6200
