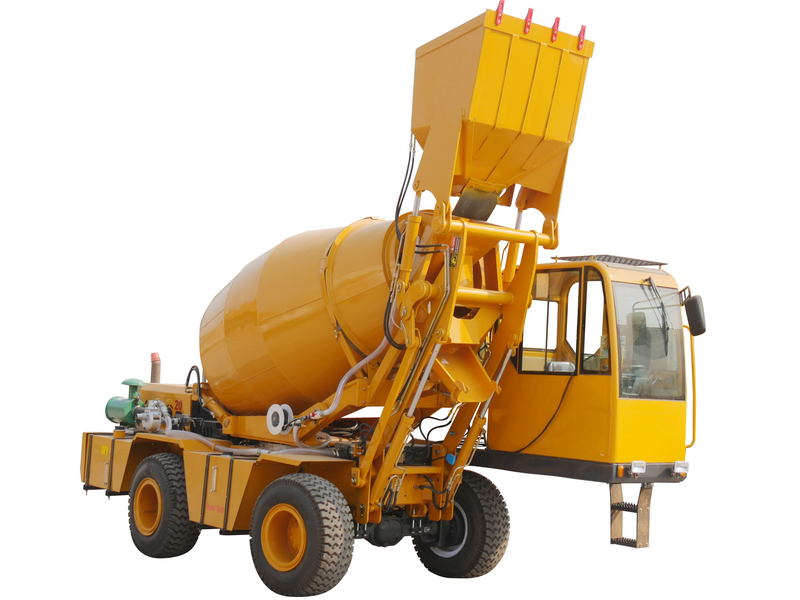

1.2 m³ Automatic loading mixer

1.2 m³ Automatic loading mixer Product introduction

The introduction of a fully automatic mixing and mixing machine to introduce foreign leading design is the perfect combination of mixing tanker and loader.
The car has a hydraulic electronic weighing scale that can accurately weigh sand and cement, and can automatically quantify the water, so that the concrete ratio is more accurate. The automatic feeding and stirring system is simple and convenient to operate, high in efficiency, saving time and labor, and greatly reducing the cost.
The automatic loading mixer is a combination of a forklift and a mixer. It can be operated by one person. The bucket shovels the material into the mixing tank. The mixing machine automatically waters and stirs according to the set gray type. It takes about 12 minutes. Can produce a can.
The automatic feeding mixer can realize the unmanned operation function. After the stone shovel is good, the driver pours the cement into the shovel. The car does not need manual operation and will automatically feed.
Product features and selling points:
(1) Independence: The automatic feeding mixer can independently operate the functions of charging, stirring, transportation and unloading.
(2) Multi-function: The automatic feeding mixer replaces the functions of loaders, mixers, transport vehicles, generator sets, etc. It has its own water tank and external suction pump, which can continuously supply water to the mixer in places where there is water; Multi-angle (270 degrees) rotary unloading, adapt to a variety of different geographical environments.
(3) Simple operation: The automatic feeding mixer uses the multi-function operating handle to control the functions of bucket lifting, lowering, returning bucket, bucket, rotation, turning tank, etc. The walking system adopts stepless speed change, high and low speed driving, which is convenient and simple.
(4) High cost performance: automatic feeding mixer, eliminating the cost of equipment such as loaders, mixers, transport vehicles, generator sets, water trucks, etc., saving time and effort, reasonable price and high cost performance.
(5)Main components: The automatic feeding mixer is mainly composed of a stirring system, a weighing system, a walking system, a hydraulic system, a power system, an automatic lubrication system, and a power system.
(6) Main application areas: The automatic feeding concrete mixer truck can complete the mixing and fabricting work of the site at the same time, and the action is flexible and automatic walking. It is widely used in various civil and public building projects, as well as subways, bridges and rural towns. And infrastructure construction in remote areas.

1.2 m³ Automatic loading mixer product features

1.the car is equipped with a 360 ° no dead angle camera, the work field is more open
2. panoramic cab, open front windshield, driving more comfortable
3. Mixing truck special bridge, front wheel steering swing, flexible operation
4. imported Pomke PERMCD double pump, the quality is more reliable
5. using pilot control, flexible and convenient
6. using FX-300 reducer, the top send motor rotation is strong and stable
7. Adopt international advanced independent radiator to extend continuous working time

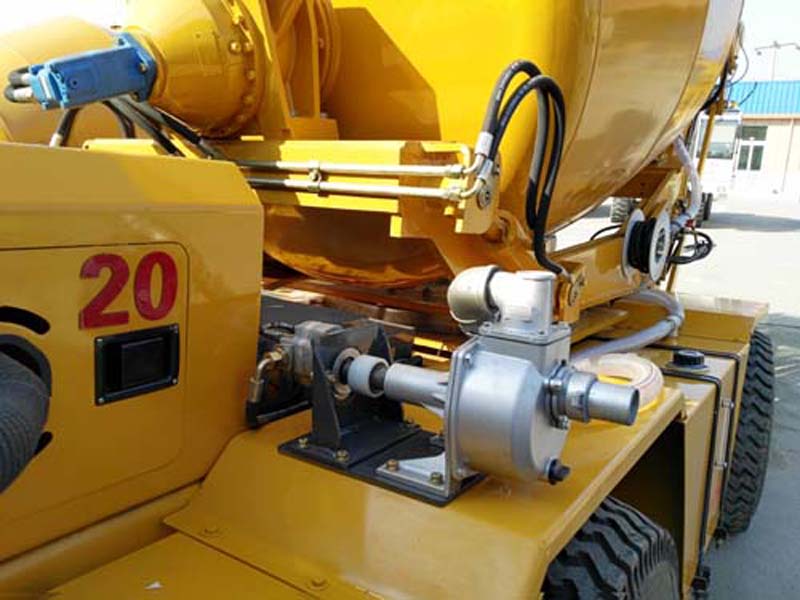

8. using independent water pump and increase the water tank to meet the needs of a large number of water
9. independent pump, external suction pump, double pump for various environments
10. forward tilting discharge, making discharge more thorough and faster
11. automatic lubrication system, butter faster and more convenient
12. can be installed tank speed control valve, adjust the tank speed according to working conditions
13. Optional automatic weighing to ensure the quality of mixing and more accurate feeding
14. can be installed with air conditioning
15. Adopting integral frame, the structure is more stable

Product number	Hourly capacity	Applicable regions and projects
1.2 m³	Actual discharge per tank ：1.2 m³ Stirring per hour：about 5tank Total output per hour：6 m³	1. Rural self-built houses 2. Village roads within 2.5 meters wide 3. Small area factory floor level 4, road repair 5, small projects Note: Items with a concrete usage of no more than 80 cubic meters per day can be used. It is recommended to use flat roads and small slopes.
1.6 m³	Actual discharge per tank ：1.6 m³ Stirring per hour：about 5tank Total output per hour：8 m³
2 m³	Actual discharge per tank ：2 m³ Stirring per hour：about 5tank Total output per hour：10 m³	1. Country road 2. Filling the trenches on the side of the road 3. Construction site construction 4, plant floor level, pavement 5, Xiushan Road use 6, the mountain construction project 7. Hydraulic engineering 8, small mixing station 9. Construction of subway and civil air defense 10. Construction of airports and standard buildings Note: The project can use more than 80 cubic meters of concrete per day, mountain and flat roads
2.6 m³	Actual discharge per tank ：2.6 m³ Stirring per hour：about 5tank Total output per hour：13 m³
3 m³	Actual discharge per tank ：3 m³ Stirring per hour：about 4-5tank Total output per hour：12-15 m³
4 m³	Actual discharge per tank ：4 m³ Stirring per hour：about 4-5tank Total output per hour：16-20 m³
